CQB15-15-65F Magnetic Pump selection principle and specific operation mode
Performance parameters of CQB16-12-50F magnetic drive pump
Pump model |
Flow rate（m3/h） |
PumpHead(m) |
Speed (r/min) |
Motor power (kw) |
CQB32-20-125 |
3.2 |
20 |
1.1 |
|
CQB32-20-160 |
32 |
1.5 |
||
CQB40-25-105 |
6.3 |
12.5 |
1.1 |
|
CQB40-25-125 |
20 |
2.2 |
||
CQB40-25-160 |
32 |
3 |
||
CQB40-25-200 |
50 |
5.5 |
||
CQB50-40-85 |
12.5 |
8 |
1.1 |
|
CQB50-32-105 |
12.5 |
1.5 |
||
CQB50-32-125 |
20 |
3 |
||
CQB50-32-160 |
32 |
4 |
||
CQB50-32-200 |
50 |
7.5 |
||
CQB50-32-250 |
80 |
18.5 |
||
CQB65-50-125 |
25 |
20 |
2900 |
4 |
CQB65-50-160 |
32 |
7.5 |
||
CQB65-40-200 |
50 |
15 |
||
CQB65-40-250 |
80 |
22 |
||
CQB80-65-125 |
50 |
20 |
7.5 |
|
CQB80-65-160 |
32 |
15 |
||
CQB80-50-200 |
50 |
22 |
||
CQB80-50-250 |
80 |
37 |
||
CQB100-80-125 |
100 |
20 |
15 |
|
CQB100-80-160 |
32 |
22 |
||
CQB100-65-200 |
50 |
37 |
||
CQB100-65-250 |
80 |
55 |
||
CQB150-150-200 |
200 |
50 |
55 |
|
CQB200-200-400 |
400 |
32 |
1450 |
75 |

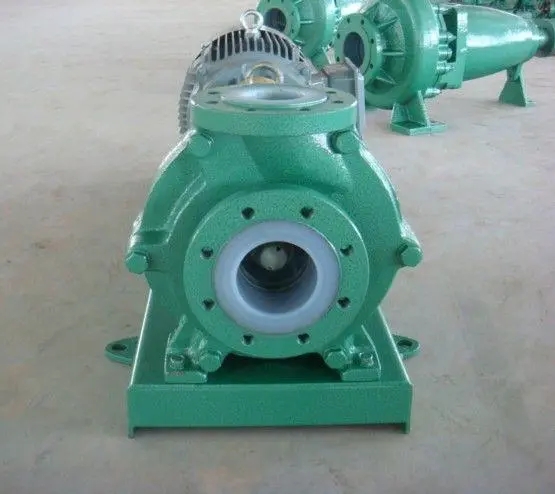

1、 Overview of CQB16-12-50F fluoroplastic lined magnetic drive pump made in China Gempump
The structure, main components and functions of fluoroplastic magnetic pump are basically the same as those of stainless steel magnetic drive pump, except that the materials of flow passage parts are different. Fluoroplastic magnetic pumps are widely used to transport corrosive or non polluting media without ferromagnetic impurities and solid particles (the size and hardness of particles need to be negotiated between the user and Boyu company), especially for the transport of flammable, explosive, volatile liquids and toxic, harmful, strong corrosion and valuable media. The non-metallic magnetic pump is better for transporting strong acid, alkali and corrosive media.
Fluoroplastic magnetic pump is a new product developed in recent years. It is made of polyvinylidene fluoride. This material is the corrosion-resistant material in the world at present. The magnetic pump produced with this material has the advantages of wide range of use, strong corrosion resistance, high mechanical strength, no aging, no toxin decomposition and so on. It can be widely used in chemical industry, pharmacy, electroplating, petroleum, environmental protection, dye, rare earth, smelting, pickling in automobile manufacturing and other fields.
2、 Main features of cqb-f fluoroplastic lined magnetic drive pump made in China Gempump
Fluoroplastic magnetic pump design *,CQB16-12-50F Mag drive pump, no mechanical shaft seal, no leakage, liquid flow parts are made of fluoroplastic, ceramics, fluororubber and other materials, and the pump shell is fixed with metal materials, so the pump body is enough to support the weight of the pipeline, which is very convenient for use and maintenance.
The basic parameters and technical performance of fluorine lined magnetic pump meet the standard requirements of jb/t7742-95 small magnetic drive centrifugal pump.
During the selection process of CQB Magnetic pump, please try to provide the following data: 1. Pump inlet/outlet diameter, 2. Pump Flow rate(capacity), 3. Head or discharge pressure (m), 4. Overflow material, 5. Fluid medium(acid or alkali), 6. Medium viscosity(clean water?), 7. Whether the medium contains particles? 8. Motor power (kw), 9. Speed (r/min), 10. Motor Voltage [v], 11. Service environment: indoor or outdoor, plateau or plain, whether the location requires explosion-proof, 12.Pump Quantity ? 13.Electric motor brand ? 14.Pump Bearing brand ? 15.Pump spare parts? etc, If you have any questions about the selection of CQB magnetic pipeline pump, please send us an email to richard@gempump.com, and we will provide you with high-quality service wholeheartedly.
