China magnetic centrifugal pump is a high-tech product that applies the working principle of permanent magnet coupling to centrifugal pumps. It has a reasonable design, advanced technology, full sealing, no leakage, corrosion resistance and other characteristics. Magnetic centrifugal pump made by China Gempump can be widely used in chemical, acid, alkali, smelting, rare earth, pesticide, dye, pharmaceutical, papermaking, electroplating, acid washing, radio, foil forming, petroleum, food, film photography and printing, scientific research institutions, national defense industry and other units to pump acid, alkali, rare and valuable oil liquids, venom, volatile liquids, especially for the transportation and pressurization of easily leaked, flammable and explosive liquids.
Structural principle
The magnetic chemical centrifugal pump consists of three parts: centrifugal pump, magnetic drive, and electric motor. The key component of the magnetic transmission is composed of an outer magnetic rotor, an inner magnetic rotor, and a non-magnetic isolation sleeve. When the electric motor drives the outer magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic substances, driving the inner magnetic rotor connected to the impeller to rotate synchronously, achieving non-contact transmission of power and transforming the dynamic seal into a static seal.
Product Features
1.The pump shaft has changed from a dynamic seal to a closed static seal, completely avoiding medium leakage.
2. No need for independent lubrication and cooling water, reducing energy consumption.
3. Low noise, low power consumption, high efficiency, and damping effect, reducing the impact of motor vibration on the pump and the impact of pump cavitation vibration on the motor.
4. When overloaded, the inner and outer magnetic rotors will slip relative to each other, providing overload protection for the motor and pump. Easy to install, disassemble, and maintain, reducing the difficulty and labor intensity of equipment maintenance, and improving the work efficiency of the pump unit.
5. It can purify the environment, eliminate pollution, protect the safety of operators, and achieve civilized production.
FEATURES
1.Reliability and quality.
2.Superior corrosion resistance.
3.Easy maintenance,Simple structure.
4.Lower operating costs,Low noise.

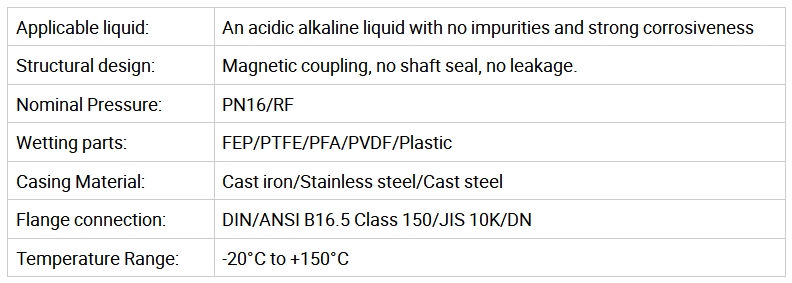

SPECIFICATIONS
Applicable liquid:An acidic alkaline liquid with no impurities and strong corrosiveness.
