ZMD teflon lined self-priming magnetic pump
Working Conditions:
Flow:3-60m³/h,
Head:15-49m,
Power:4-18.5kw,

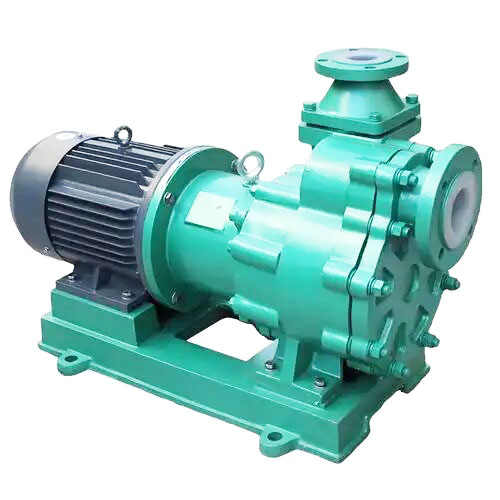

ZMD-self-priming-magnetic-pump-China
Range of working temperature: -20~80°C
Fluorine plastic interlined self-priming pumps are widely used in various industries due to their excellent corrosion resistance and self-priming capabilities.
Pump Application:
1.Acids
Hydrochloric acid (HCl), Sulfuric acid (H2SO4), Nitric acid (HNO3), Phosphoric acid (H3PO4), Hydro fluoric acid (HF).
2.Alkalis
Sodium hydroxide (NaOH), Potassium hydroxide (KOH), Ammonium hydroxide (NH4OH),
3.Organic Solvents
Acetone, Ethanol, Methanol, Toluene, Chloroform,
4.Salt Solutions
Sodium chloride (NaCl), Potassium chloride (KCl), Ferric chloride (FeCl3),
5.Oxidizing Agents
Hydrogen peroxide (H2O2), Sodium hypochlorite (NaOCl),
6.Other Corrosive Chemicals
Bromine, Chlorine, Iodine solutions.
7.High-Purity Chemicals
Ultrapure water, Pharmaceutical-grade chemicals.
Pump Features:
Corrosion Resistance: Fluorine plastics like PTFE or PVDF provide excellent resistance to a wide range of corrosive chemicals.
Self-Priming Capability: These pumps can evacuate air and prime themselves, making them suitable for applications where the pump is not always submerged.
Leak-Free Design: Often equipped with mechanical seals or diaphragm seals to prevent leakage of hazardous fluids.
High Temperature Resistance: Fluorine plastics can handle high-temperature fluids, depending on the specific material used.
Model and parameter
| Item | Model | Flow (m3/h) |
Head (m) |
Efficiency (%) |
NPSHa (m) |
Inlet x outlet (mm) | Self-priming height ( m) | Self-priming time ( seconds) |
Speed (RPM) |
Power (KW) |
Pump and motor weight (kg) |
| 1 | 40ZMD-32F | 3 | 34 | 16 | 3.00 | 40*25 | 3mxckon | 150 | 2900 | 4 | 125 |
| *6 | 32 | 24 | |||||||||
| 10 | 28 | 20 | |||||||||
| 2 | 50ZMD-32F | 8 | 34 | 25 | 3.00 | 50*50 | 3 | 180 | 2900 | 5.5 | 180 |
| *15 | 32 | 44 | |||||||||
| 20 | 28 | 44 | |||||||||
| 3 | 50ZMD-45F | 8 | 48 | 21 | 3.00 | 50*50 | 3 | 180 | 2900 | 7.5 | 170 |
| *12.5 | 48 | 35 | |||||||||
| 15 | 47 | 40 | |||||||||
| 4 | 65ZMD-32F | 20 | 34 | 40 | 3.50 | 65*50 | 3 | 200 | 2900 | 7.5 | 200 |
| *30 | 32 | 52 | |||||||||
| 35 | 28 | 48 | |||||||||
| 5 | 65ZMD-45F | 20 | 45 | 40 | 4.50 | 65*40 | 3 | 200 | 2900 | 11 | 290 |
| *25 | 45 | 44 | |||||||||
| 35 | 40 | 53 | |||||||||
| 6 | 80ZMD-32F | 35 | 34 | 50 | 3.50 | 80*65 | 3 | 200 | 2900 | 11 | 280 |
| *60 | 32 | 55 | |||||||||
| 65 | 28 | 50 | |||||||||
| 7 | 80ZMD-45F | 35 | 46 | 38 | 4.50 | 80*50 | 3 | 200 | 2900 | 18.5 | 320 |
| *50 | 45 | 50 | |||||||||
| 60 | 40 | 48 |
