CQB15-15-65F Magnetic Pump selection principle and specific operation mode
Product classification: fluoroplastic magnetic pump
Application fields: electroplating wastewater, pickling and polishing, medicine and pesticides, fine chemicals, iron and steel metallurgy, etc. Applicable media: acid, alkali, salt, organic solvent, etc. Flow range: 0.6t/h-100t/h, lift range: 2m-50m, power range: 0.025kw-18.5kw,
Operating temperature: -20 ℃ – 150 ℃.
The configuration can be changed according to the actual working conditions.

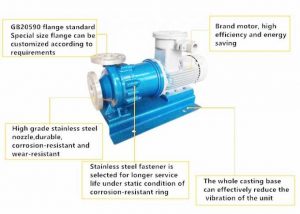

CQB magnetic drive centrifugal pump (referred to as magnetic pump) is usually composed of motor, magnetic coupling and corrosion-resistant centrifugal pump. Its main feature is to use the magnetic coupling to transmit power without leakage. When the motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic line of force passes through the gap and the isolation sleeve and acts on the inner magnetic steel, so that the pump rotor and the motor rotate synchronously and transmit torque without mechanical contact.
Application:
Series CQB magnetic coupling pump is a trouble-free product, the impeller is driven by a magnetic coupling. This allows isolation of the pumped liquid. No seal is required. This makes it ideal in situations where no leakage is permissible, with performance equivalent to a standard centrifugal pump. Series CQB magnetic coupling pump can be used where the requirement is pumping of clean or even corrosive liquids.
• Chemical and petrochemical industries
• Pharmaceutical industry
• Paint industry
• Plastic and rubber industries
• Ferrous and non-ferrous metal industries
• Paper and cellulose industries
• Textile industry
• Food and drink industries
Advantages:
• Extremely low risk of leakage for fluid or vapor emissions
• Magnetic drive is stable
• Little maintenance needed
• Long service life (go 10 years)
• Alignment of pump and motor is needless
Limitation:
• Only permit clean liquids free of solids
• Require higher power absorption than conventional pump
• More expensive (will payback from low maintenance)
|
Model
|
Import (mm)
|
Export (mm)
|
Flow
|
Lift
|
Power
|
speed (r/min)
|
efficient
|
Voltage
|
NPSH (m)
|
|
(m3/h)
|
(m)
|
(kw)
|
(%)
|
(v)
|
|||||
|
CQB-15-10-85F
|
15
|
10
|
1.8
|
8
|
0.12
|
2900
|
33
|
220/380
|
6
|
|
CQB-20-15-105F
|
20
|
15
|
3
|
12
|
0.37
|
2900
|
33
|
220/380
|
6
|
|
CQB-32-25-125F
|
32
|
25
|
3.2
|
20
|
0.75
|
2900
|
35
|
380
|
5
|
|
CQB-40-32-115F
|
40
|
32
|
6.3
|
15
|
0.75
|
2900
|
45
|
380
|
6
|
|
CQB-40-32-145F
|
40
|
32
|
6.3
|
25
|
1.5
|
2900
|
42
|
380
|
5
|
|
CQB-50-40-125F
|
50
|
40
|
12.5
|
20
|
2.2
|
2900
|
47
|
380
|
3.5
|
|
CQB-50-40-160F
|
50
|
40
|
12.5
|
32
|
3
|
2900
|
46
|
380
|
3.5
|
|
CQB-65-50-125F
|
65
|
50
|
25
|
20
|
3
|
2900
|
58
|
380
|
4
|
|
CQB-65-50-160F
|
65
|
50
|
25
|
32
|
4
|
2900
|
56
|
380
|
4
|
|
CQB-80-65-125F
|
80
|
65
|
50
|
20
|
7.5
|
2900
|
66
|
380
|
4
|
|
CQB-80-65-160F
|
80
|
65
|
50
|
32
|
11
|
2900
|
64
|
380
|
4
|
|
CQB-100-80-125F
|
100
|
80
|
100
|
20
|
15
|
2900
|
72
|
380
|
4
|
|
CQB-100-80-160F
|
100
|
80
|
100
|
32
|
18.5
|
2900
|
70
|
380
|
4
|
Product details:
Capacity: |
4 ~ 400 m3/h |
Head: |
20 ~ 125 m |
Speed at 50 Hz: |
1450 ~2900 RPM |
Speed at 60 Hz |
1750 ~ 3500 RPM |
Inlet diameter: |
50 ~ 200 mm |
Outlet diameter: |
32 ~ 150 mm |
Power of fitted motor: |
1.1 ~ 132 kW |
The highest work pressure: |
1.6 Mpa |
Working Principle: |
Magnetic drive Centrifugal Chemical Pump |
Material: |
SS304, SS316, SS316L,PTFE |
Max Temperature: |
300 Degree |
Warranty: |
1 Year without Spare Parts |
Lead time: |
7~30 Days |
Package: |
International Standard Plywood Case |
Payment: |
T/T, LC, VISA |
