40ZJ-I-A17

40ZJ-I-A17

ZJ High Chromium Wear-Resistant Horizontal Fraction Sand Suction Slurry Pump

Pump model	Motor Speed	Pump Capacity	Pump Head	NPSH	Motor Power	Max. particle size	Weight
	rpm	m³/h	m	m	kw	mm	kg
40ZJ-I-17A	1400-2900	4.5-23	9.1-44.6	2.5-4.5	0.55-7.5	11	121

The ZJ series slurry pump, which are created by Shijiazhuang Jiemu Machinery Equipment Co., Ltd, is a new generation anti-wear, energy saving slurry pump.

Scope of application: The ZJ series slurry pump is mainly used to transport abrasive slurries containing solid particles, the maximum weight concentration it can handle is: 45% for mortar and 60% for mineral slurry. It can be operated in series according to customer needs.

Material: High chromium alloy wear-resistant material.

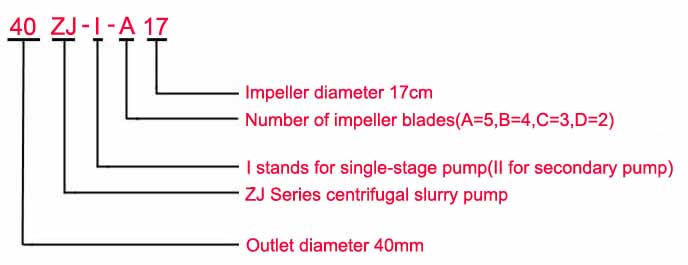

Model meaning: 40ZJ-I-A17 ,

Advantages:

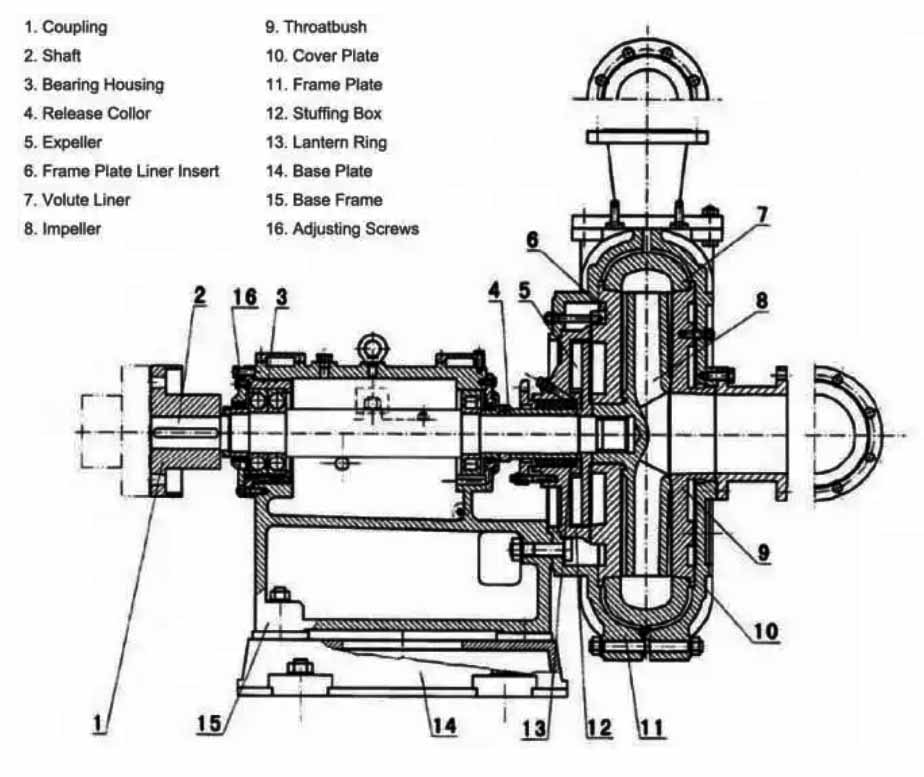

1. The pump body adopts a double pump casing structure, which facilitates the replacement of flow components. According to pressure requirements, the outer pump casing is made of ball milled cast iron, and the inner casing is made of high chromium wear-resistant discounted cast iron or cast steel.

2. The outlet position of the pump can be installed and used by rotating eight different angles at a 45 degree interval as needed.

3. Sealing form: The ZJ series slurry pump can adopt two types of shaft seals: a combination seal with auxiliary impeller and packing, and a mechanical seal.

Application Field:
The ZJ series slurry pump is widely used in industries such as electricity, metallurgy, coal, building materials, and chemical industry. It is used for processing concentrate tailings in beneficiation plants, removing ash and slag in power plants, transporting coal slurry and heavy medium coal in coal preparation plants, and transporting slurry in coastal river mining operations.
