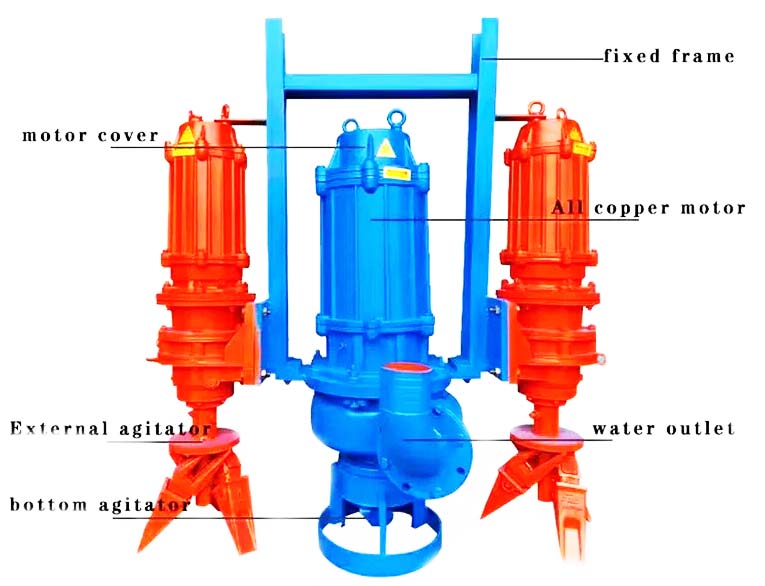

ZJQ submersible slurry pump

China ZJQ series submersible slurry pump are single stage single suction centrifugal slurry pumps.
They are widely used in industry of mining, electrical power, metallurgy, coal, building materials etc., for transporting medium with strong abrasive solid particles and mildly corrosive sewage slurry.
Mud pump, sand pump, dredge pump, sludge pump, impurity pump and desilting pump are all belong to category of slurry pump.
ZJQ series slurry pumps advantages are as follows:
1. Long service life: comprehensive optimization and innovative design have been carried out in hydraulic models, sealing technology, mechanical structures, protection and control, etc.
2. Good passing ability: max passing particles size is 80% of the minimum flow channel size of the pump.
3. The site is cleaner: Submerging the pump underwater does not require the construction of a responsible ground pump room and fixed devices.
4. High flow rate capacity: can be reached 2333m3/h.
5. Comprehensive performance is good, high head: long distance and high head transportation, single set head can reach to max 134m.
6. Diameter size: outlet size from 40mm to 300mm.
7. High corrosion, abrasion resistance widely material optional: metal flow parts including: (Cr27Mo),(Cr30MoNi),(Cr30MoNiCu) material etc. PH value 4-10.
8. Widely application: all slurry, mud and bad corrosive medium can be transported, widely used in industry of mining, electrical power, metallurgy, coal, construction etc.
9. Driving engine of motor.
10. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
11. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
12. Easy operation, lower noise and vibration.

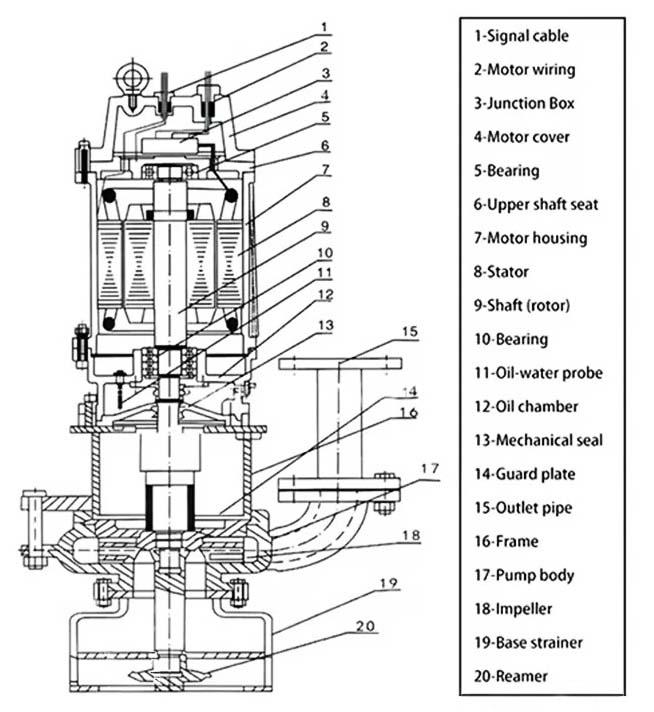

China-ZJQ-Slurry-Pump-Drawing
